6GK1503-3CB00 SIEMENS

6GK1503-3CB00 SIEMENS Basis unit

Product  Description：

The module serves as an interface between electrical and optical PROFIBUS segments. It supports various network topologies, including line, star, and redundant ring structures. By using glass fiber optics, it effectively overcomes the distance limitations and electromagnetic interference (EMI) issues associated with traditional copper wiring. The G12 designation indicates that it features one electrical RS-485 port and two optical ports, making it suitable for redundant or daisy-chained configurations.

Product Parameters

Power Supply and Consumption

• Rated Supply Voltage: 24V DC

• Permissible Range: 18.8V to 28.8V DC

• Current Consumption: Maximum 0.2A at 24V DC

• Redundancy: Supports redundant power supply input via a 5-pole terminal block

Communication Interfaces

• Electrical Interface: 1 x 9-pin Sub-D socket (RS-485)

• Optical Interfaces: 2 x Glass Fiber Optic interfaces (utilizing 4 x BFOC sockets)

• Transmission Rate: 9.6 kbps up to 12 Mbps (automatic detection)

• Wavelength: 860 nm (Multimode)

Transmission Distances

• With 50/125 µm Glass Fiber: Up to 3000 meters (3 km)

• With 62.5/125 µm Glass Fiber: Up to 3000 meters (3 km)

Physical and Environmental

• Dimensions: 39.5 mm (W) x 112 mm (H) x 74.5 mm (D)

• Weight: Approximately 340 grams

• Protection Class: IP40

• Operating Temperature: 0°C to +60°C

• Mounting: 35 mm DIN rail or wall mounting

Product Advantages

High Reliability and Redundancy The module supports the creation of a redundant optical ring. In the event of a fiber break or module failure, the network reconfigures itself within milliseconds, ensuring uninterrupted communication for critical industrial processes.

Excellent Noise Immunity Because the signals are transmitted via light through glass fibers, the communication is entirely immune to electromagnetic interference, lightning strikes, and ground potential differences. This is vital in environments with high-voltage equipment or large motors.

Long Distance Connectivity Standard RS-485 PROFIBUS segments are limited to a few hundred meters at high speeds. The OLM/G12 allows these segments to be extended up to 3 kilometers per link without any loss of signal integrity or speed.

Versatile Topology Support The inclusion of two optical ports allows users to build flexible architectures. You can link multiple modules in a line, create a central star hub, or secure the system with a redundant ring.

Important Considerations

Fiber Compatibility This specific model (3CB00) is designed for multimode glass fiber. It is not compatible with single-mode fiber or plastic optical fiber (POF). Ensure your fiber infrastructure matches the 860 nm wavelength and multimode specifications.

Fiber Handling Optical connectors must be kept extremely clean. Even microscopic dust particles can cause significant signal attenuation. Always use protective caps when the ports are not in use and clean the BFOC connectors before insertion.

Power Supply Polarity While the module has integrated fusing, ensure correct polarity when wiring the 24V DC supply to avoid potential damage to the signaling contact or internal circuitry.

Signaling Contact Usage The module features a signaling contact that can be used to trigger an alarm in case of a power failure or a fault on the optical link. It is highly recommended to integrate this into your PLC or SCADA system for real-time diagnostics.

Product Applications

Large Scale Industrial Plants Used in automotive, chemical, and food and beverage plants where PROFIBUS segments must span across multiple buildings or large shop floors.

Infrastructure Projects Ideal for tunnel control systems, water treatment facilities, and traffic management where long-distance, high-speed data transmission is required.

High EMI Environments Applied in power plants, steel mills, and near frequency converters where high electrical noise would otherwise disrupt standard copper PROFIBUS cables.

Redundant Networks Critical for safety-instrumented systems or continuous process industries where any downtime due to cable damage must be avoided through the use of an optical redundant ring.

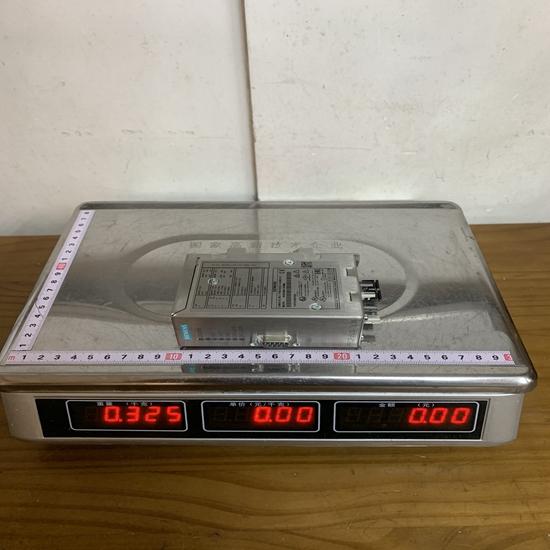

The structure and details of the product：
