5A5010.0 B&R

5A5010.0 B&R Output Module

Product  Description：

B&R (Bernecker + Rainer) Output Modules, a core part of the X20, X67, and ACOPOS systems, are high-performance components designed to convert internal digital or analog control signals from the PLC into physical electrical outputs. These outputs actuate various field devices such as solenoid valves, contactors, signal lamps, and motor starters. Known for their "three-part" modularity, B&R modules allow for high-density configurations while maintaining ease of maintenance and rugged industrial reliability.

Product Parameters

The technical characteristics of B&R output modules are defined by their switching capacity and synchronization precision:

• Output Types: Available in Digital Output (24V DC transistor, relay) and Analog Output (0-10V, ±10V, 0-20mA, 4-20mA) versions.

• Channel Density: Ultra-compact designs offering 2, 4, 8, or 12 channels per module to maximize cabinet space.

• Rated Current: Digital transistor outputs typically range from 0.5A to 2A per channel, while high-power modules can handle up to 10A for specific loads.

• Switching Frequency: High-speed transistor outputs support pulse-width modulation (PWM) and fast switching cycles, often reaching the microsecond range.

• Resolution: Analog output modules provide high-precision signal generation with 12-bit to 16-bit resolution.

• Update Time: Designed for real-time performance with system bus cycle times as low as 100 microseconds.

Product Advantages

B&R output modules are distinguished by their unique hardware architecture and intelligent control features:

• Modular X20 Design: The separation of the terminal block, electronic module, and bus module allows for "hot-plugging," enabling module replacement without disconnecting field wiring or interrupting the power to the rest of the station.

• Integrated Diagnostics: Each channel features intelligent monitoring for short circuits, overloads, and open lines, with status reporting sent directly to the CPU and displayed via local LEDs.

• Re-read Capability: Many B&R digital modules can internally "re-read" the state of the output pin to verify that the physical output matches the commanded logic, enhancing system safety.

• Extreme Synchronization: Utilizing the POWERLINK communication protocol, B&R modules achieve nanosecond-level jitter, making them ideal for high-speed motion control and precision synchronization tasks.

• Environmental Resilience: Modules are available with coated circuit boards (conformal coating) to withstand harsh environments including moisture, salt spray, and corrosive gases.

Product Applications

These modules are used in high-end automation across several specialized industries:

• Packaging Machinery: Driving high-speed solenoids and vacuum grippers in pick-and-place applications and flow-wrapping machines.

• Plastics Processing: Controlling heating elements and hydraulic valves in injection molding machines where precise temperature and pressure regulation is required.

• Mobile Automation: Utilizing ruggedized X90 modules for output control in agricultural machinery, construction equipment, and specialty vehicles.

• Printing and Paper: Synchronizing high-speed actuators in printing presses to ensure perfect alignment and tension control at high web speeds.

• Energy Systems: Managing auxiliary outputs in wind turbine pitch control systems and large-scale battery storage interfaces.

Important Precautions

To ensure safe operation and prevent damage to the electronics, the following precautions must be observed:

• Common Power Supply Limits: When using high-density modules, ensure that the total current flowing through the module's "feed-in" does not exceed the rated limit of the bus module or terminal block.

• Protection Against Inductive Loads: Although most B&R transistor outputs include internal flyback diodes, it is highly recommended to install external suppressors (RC elements or varistors) when switching large inductive loads like high-power motor contactors.

• Correct Terminal Assignment: Due to the high density of the X20 system, ensure that the coding element is correctly used to prevent an electronic module from being inserted into the wrong terminal block.

• Heat Dissipation: Maintain the specified mounting orientation (typically vertical) and ensure minimum clearance above and below the module rack to allow for natural convection cooling.

• Grounding and Shielding: For analog output modules, use shielded cables and ensure the shield is connected to the designated functional ground (FE) rail to prevent signal drift caused by electromagnetic interference.

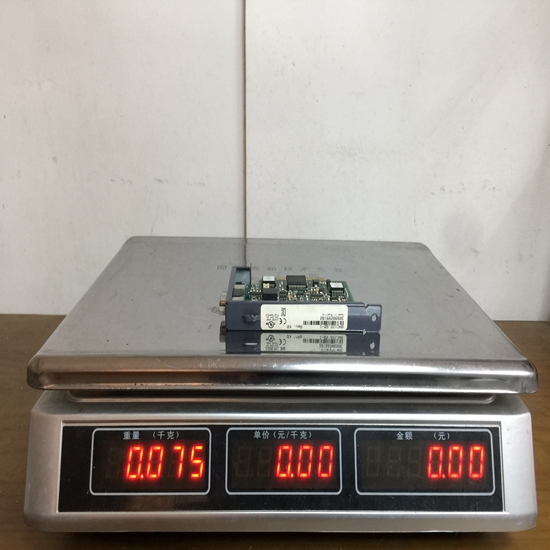

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
