505889-M1 METSO

505889-M1  METSO controller module

Product  Description：

Metso controller modules, heavily utilized within the MaxDNA and newer generation distributed control systems (DCS), serve as the primary execution engine for advanced process control. These modules are industrial-grade computers designed to run real-time operating systems, executing continuous control algorithms, batch sequences, and interlocking logic. They act as the central processing hub, receiving data from field inputs, performing high-speed calculations based on user configuration, and transmitting commands to final control elements like valves, motors, and drives.

Product Parameters

The technical composition of a Metso controller module is engineered for high availability and precise task scheduling:

• Processor Architecture: High-performance, low-power industrial processors equipped with real-time operating system (RTOS) firmware for predictable, deterministic execution.

• Execution Cycle Time: Capable of processing critical logic loops at speeds down to 10 milliseconds, with standard process loops typically executing every 100 to 250 milliseconds.

• Memory Capacity: Substantial onboard ECC (Error-Correcting Code) RAM for dynamic data processing and non-volatile Flash memory for permanent storage of control strategies and system configurations.

• Communication Bus Compatibility: Integrated support for redundant high-speed control networks, enabling peer-to-peer data sharing with neighboring controllers at gigabit speeds.

• Time Synchronization: Built-in support for Network Time Protocol (NTP) or IEEE 1588 Precision Time Protocol, ensuring millisecond-level timestamp accuracy across all modules.

• Power Requirements: Operates on a standard regulated 24V DC input, featuring low power consumption and optimized thermal dissipation characteristics to eliminate the need for internal cooling fans.

Product Advantages

Metso controller modules are preferred in critical process industries due to their reliability and advanced processing capabilities:

• High Availability through Redundancy: Supports 1-to-1 hot-standby redundancy configurations where the backup module tracks the primary module's memory state in real time, ensuring a bumpless transfer within microseconds if a fault occurs.

• Advanced Process Control Integration: Capable of executing complex, multi-variable control algorithms and fuzzy logic natively at the controller level, reducing the need for separate supervisory optimization computers.

• Online Configuration Changes: Allows engineers to modify control strategies, add I/O points, and update parameters on the fly without stopping the controller or interrupting the running production process.

• Robust Cybersecurity Profile: Features built-in hardware security features, including secure boot, encrypted firmware validation, and access control lists to protect the control logic from unauthorized external interference.

• Extended Lifecycle and Durability: Manufactured with premium industrial components and optional conformal coating to resist harsh ambient conditions, ensuring an operational life expectancy that spans decades.

Product Applications

These controller modules are deployed globally to manage high-stakes, continuous processes:

• Pulp and Paper Processing: Governing the complex, non-linear control loops of continuous digesters, bleaching plants, and high-speed paper machine drying sections.

• Mining and Minerals Optimization: Controlling grinding mills, flotation cells, and thickeners where slurry density, flow, and chemical dosing must be balanced precisely.

• Power Generation: Managing boiler control loops, burner management systems (BMS), and steam turbine auxiliary systems in utility-scale thermal power plants.

• Chemical and Petrochemical Refining: Running the critical safety interlocks, distillation column controls, and batch reaction sequences where temperature and pressure boundaries are strict.

• Biorefining and Waste-to-Energy: Automating the gasification, fermentation, and emission monitoring processes in modern renewable fuel facilities.

Important Precautions

To preserve the operational integrity of the controller module and protect the surrounding infrastructure, the following guidelines must be followed:

• Redundancy Pairing: When configuring a redundant controller pair, ensure that both the primary and backup modules use identical hardware revisions and identical firmware versions to prevent synchronization errors.

• Electrostatic Discharge Prevention: Always use a grounded anti-static wrist strap when handling the module outside of its enclosure, as static electricity can degrade or destroy the microprocessors.

• Backplane Seating: Ensure the module is firmly pushed into its backplane slot and the retaining screws or latches are fully engaged. A partial connection can cause intermittent data corruption on the system bus.

• Battery and NVRAM Health: Regularly monitor the status registers of the module's backup battery or non-volatile memory system to ensure that retain values and calibration data are not lost during a total power outage.

• Enclosure Environmental Control: Keep the control cabinet doors closed to prevent the ingress of conductive dust or corrosive gases, and ensure that the ambient temperature inside the cabinet does not exceed the module's maximum thermal rating.

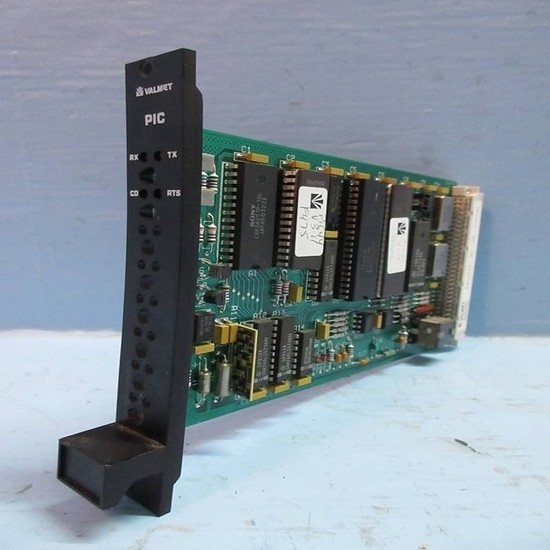

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
