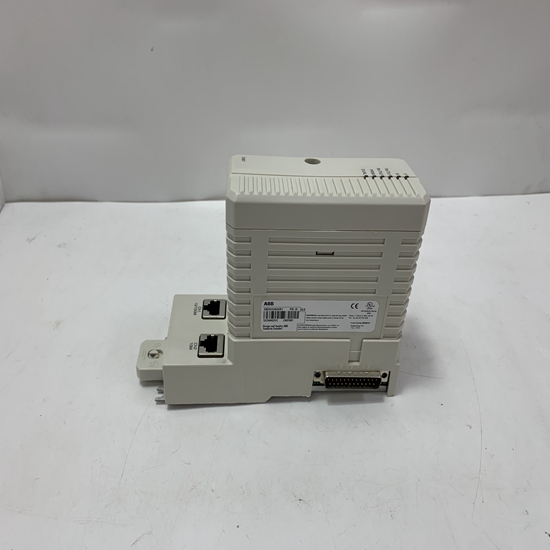

3AFE64634798 NIOC-02C ABB Bailey

3AFE64634798 NIOC-02C ABB Bailey programmable controller module

Product  Description：

• • An ABB Bailey programmable controller module is an electronic circuit board, housed in a robust enclosure, designed to execute control logic, acquire data from field devices, and communicate with other parts of a control system. These modules are the workhorses that interpret real-world signals, perform calculations, make decisions, and then send commands back to the process equipment. They form a distributed architecture, allowing control to be spread across a plant, enhancing reliability and efficiency.

    Key types of modules include:

    • Processor Modules (e.g., BRC400, MFP02/12): These are the brains of the system, executing control strategies, managing data, and coordinating communication. They can handle complex algorithms and support redundant configurations for high availability.

    • Input/Output (I/O) Modules (e.g., IMDSI12, IMAIM04): These modules connect to sensors and actuators in the field. They convert analog and digital signals from the process into a format the controller can understand, and vice versa, sending commands back to the process.

    • Communication Modules (e.g., INICT01, INESM01): These modules enable various communication protocols to connect the control system with other PLCs, HMIs, plant networks, and external systems.



    Product Parameters (Typical)



    Parameters vary widely based on the specific module type and series (e.g., INFI 90, Symphony Plus).

    • Processor Modules:

      • Processing Speed: (e.g., MHz range for older modules, faster for newer Symphony Plus controllers).

      • Memory Capacity: (e.g., 512KB ROM, 512KB RAM, 256KB NVRAM for MFP02; newer controllers offer MBs of RAM and NVRAM).

      • Function Blocks Supported: (e.g., up to 30,000 function blocks for BRC400/410).

      • Communication Ports: (e.g., Ethernet, serial ports for Modbus TCP, SNPX, etc.).

      • Power Requirements: (e.g., +5 VDC @ 2A; 10W typical).

    • I/O Modules:

      • Number of Channels: (e.g., 4 analog inputs, 3 digital inputs, 4 digital outputs, 2 analog outputs for IMCIS12; 16-32 channels for dedicated DI/DO modules).

      • Signal Types: Digital (24VDC, 48VDC, 125VDC, 120VAC), Analog (4-20mA, 1-5V, 0-10V, RTD, Thermocouple).

      • Voltage/Current Ratings: Specific to the type of I/O.

      • Isolation: Channel-to-channel, channel-to-earth isolation.

      • Accuracy/Resolution: (e.g., 12-bit for analog modules).

    • Communication Modules:

      • Protocols Supported: Modbus/TCP, EtherCAT, Profinet, INFI-Net, Plant Loop, Ethernet, Fibre Optics.

      • Data Rates: (e.g., high-speed for modern Ethernet modules).

      • Interface Types: RJ45, DB9, fiber optic connectors.

    • General Parameters (Across Module Types):

      • Operating Temperature Range: Typically wide industrial ranges (e.g., -20°C to +70°C or -40°C to +70°C).

      • Humidity Range: (e.g., 5% to 95% non-condensing).

      • Mounting: Designed to fit specific ABB Bailey racks/cabinets.

      • Certifications: CSA, Factory Mutual (FM) for hazardous locations (Class I, Division 2), CE, UL.



    Product Advantages



    • Robust and Reliable: Built for continuous operation in harsh industrial environments, offering high availability.

    • Modular and Scalable: Allows for flexible system design and easy expansion as plant requirements change.

    • High Performance: Provides fast processing speeds and precise control for critical industrial processes.

    • Seamless Integration: Designed to work cohesively within the ABB Bailey (and later Symphony Plus) DCS architecture, ensuring a unified control environment.

    • Legacy Compatibility: Modern Symphony Plus systems offer backward compatibility, allowing for non-invasive upgrades and modernization while preserving existing investments in field wiring and termination units.

    • Advanced Control Capabilities: Support for complex control strategies, including multi-loop analog, sequential, batch, and advanced control functions.

    • Distributed Architecture: Enhances system reliability and reduces the impact of single point failures.



    Precautions



    • Compatibility: Always ensure the specific module is compatible with your existing ABB Bailey system's series (e.g., INFI 90, Network 90, Symphony Plus) and current firmware/software versions.

    • ESD (Electrostatic Discharge) Protection: Handle modules with care, using proper ESD grounding techniques during installation and removal to prevent damage to sensitive electronics.

    • Power Requirements: Verify that the system's power supply can adequately meet the power demands of all installed modules.

    • Wiring Standards: Adhere strictly to ABB's wiring guidelines and industry best practices to prevent electrical interference, short circuits, and ensure signal integrity.

    • Environmental Conditions: Operate modules within their specified temperature, humidity, and vibration limits to ensure longevity and reliable performance.

    • Qualified Personnel: Installation, configuration, and maintenance should only be performed by trained and qualified personnel to avoid injury, equipment damage, or process upsets.

    • Process Upset Potential: Be aware that adjusting or removing modules while the system is online can potentially upset the controlled process, leading to operational disruptions or safety hazards. Always follow proper lockout/tagout procedures and system bypass protocols.



    Product Applications



    ABB Bailey programmable controller modules are extensively used in mission-critical applications across various heavy industries where reliable and precise process control is essential.

    • Power Generation: Control of boilers, turbines, generators, and balance-of-plant systems in thermal, hydro, and nuclear power plants.

    • Oil and Gas: Process control for refineries, petrochemical plants, offshore platforms, pipelines, and LNG terminals.

    • Pulp and Paper: Automation of pulping, papermaking, and finishing processes.

    • Metals and Mining: Control of blast furnaces, rolling mills, and ore processing plants.

    • Water and Wastewater Treatment: Managing pumps, valves, and chemical dosing in municipal and industrial water treatment facilities.

    • Chemical Industry: Batch and continuous process control for chemical manufacturing.

The structure and details of the product：
