3500/92-04-01-00 Bently Nevada

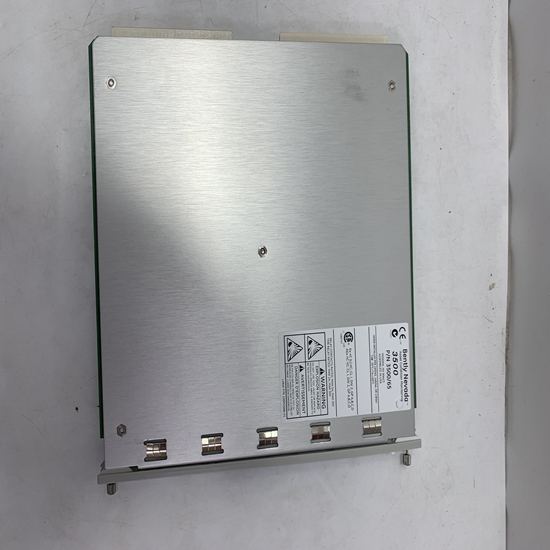

3500/92-04-01-00 Bently Nevada Output Module

Product  Description：

• Bently Nevada Output Modules are essential components of Bently Nevada's machinery protection and condition monitoring systems, such as the 3500 Series and Orbit 60 Series. These modules provide the interface between the monitoring system and external control or alarm devices. They are designed to output signals based on the monitored conditions of rotating machinery, enabling critical actions like alarms and machinery shutdowns when predefined thresholds are exceeded. Different types of output modules are available, including relay output modules and buffered output modules, catering to various application requirements.

  Key Functions

  • Alarm Indication: Triggering external alarms (visual or audible) when machinery parameters exceed alert or danger setpoints.

  • Machine Shutdown: Initiating automatic shutdown sequences to protect machinery from catastrophic failure.
  • Control Actions: Interfacing with control systems to adjust process parameters based on machinery condition.
  • Data Output: Providing buffered or conditioned signals for external recording or analysis.
  • Voting Logic Implementation: Some advanced output modules allow for the implementation of voting logic (e.g., 2 out of 3) to prevent spurious trips.


  Product Parameters (Typical)

  • Number of Output Channels: Varies depending on the module type (e.g., 4-channel, 16-channel).
  • Output Type: Relay (SPST, SPDT), Buffered Voltage, Buffered Current.
  • Relay Contact Ratings: Maximum voltage and current the relay contacts can switch (AC and DC).
  • Buffered Output Characteristics: Voltage or current range, impedance.
  • Update Rate: The frequency at which the output signals are updated based on monitored data.
  • Power Consumption: The power required by the module.
  • Operating Temperature Range: The ambient temperature range within which the module can operate reliably.
  • Humidity Limits: The non-condensing humidity range for operation.
  • Agency Approvals: Certifications for hazardous areas or functional safety (e.g., CSA, ATEX, IECEx, SIL).

  Product Advantages

  • Enhanced Machinery Protection: Enables timely and reliable response to abnormal machinery conditions, preventing costly damage and downtime.
  • Increased Plant Safety: Facilitates safe operation by initiating shutdowns in critical situations.
  • Flexible Integration: Offers various output types and configurations to interface with a wide range of external devices and control systems.
  • Configurable Logic: Advanced modules allow for customization of alarm and trip logic to suit specific application needs.
  • High Reliability: Designed for continuous operation in demanding industrial environments.
  • Compatibility: Seamlessly integrates with Bently Nevada's comprehensive machinery monitoring systems.

  Precautions

  • Electrostatic Discharge (ESD): Handle output modules with care to avoid damage from static electricity. Use proper grounding techniques.
  • Wiring: Ensure correct wiring according to the module's terminal diagrams and applicable safety standards. Incorrect wiring can lead to malfunction or damage.
  • Power Supply Compatibility: Verify that the power supply to the monitoring system meets the module's requirements.
  • Environmental Limits: Operate the module within its specified temperature and humidity ranges. Exceeding these limits can affect performance and reliability.
  • Configuration Accuracy: Ensure that the output logic, alarm setpoints, and relay configurations are correctly programmed using the appropriate Bently Nevada software. Incorrect configurations can lead to undesired or ineffective actions.
  • Functional Safety Considerations: For applications requiring functional safety (SIL), use certified output modules and adhere to the safety manual guidelines for installation and configuration.
  • Contact Ratings: Do not exceed the specified voltage and current ratings of relay contacts to prevent damage or failure.
  • Regular Testing: Periodically test the functionality of the output module and the connected external devices to ensure proper operation.
