3500/05-01-03-00-00-00 Bently Nevada

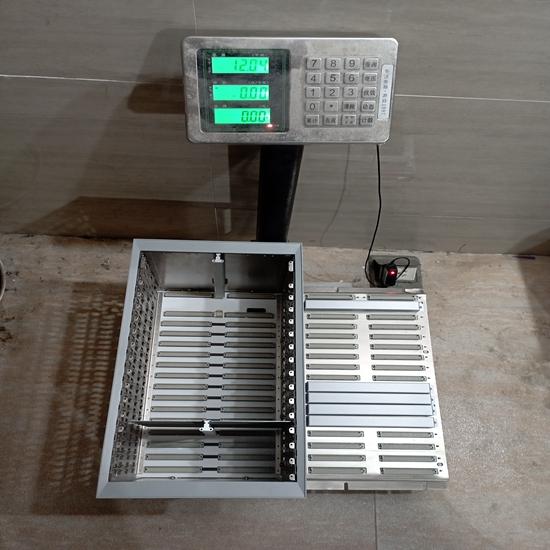

3500/05-01-03-00-00-00 Bently Nevada Control Unit

Product  Description：

• • • The alphanumeric suffix codes define the specific hardware options of this rack:

      • 3500/05: System Rack model series.

      • 01: Rack Size. This indicates a 19-inch Full-Size Rack featuring 14 available module slots.

      • 03: Mounting Option. This designates the Bulkhead Mount format. In this configuration, the rack is mounted against a wall or panel where rear access is not possible; therefore, all wiring and I/O modules are accessible from the front.

      • 00: Agency Approval Option. No specific hazardous area approvals (None).

      • 00: Reserved.

      • 00: European Compliance Option. No CE compliance marking.

      Product Specifications

      • Physical Capacity: 14 slots for monitor modules plus 2 dedicated slots on the far left for power supplies and the Rack Interface Module (RIM).

      • Mounting Type: Bulkhead (Front Access).

      • Dimensions: Approximately 266 mm (10.5 in) in height and 482 mm (19 in) in width.

      • Operating Temperature: -30°C to +65°C (-22°F to +150°F).

      • Storage Temperature: -40°C to +85°C (-40°F to +185°F).

      • Humidity: Up to 95% non-condensing.

      • Backplane Interface: Integrated high-speed data bus for real-time communication between modules.

      Product Advantages

      • Space Efficient: The bulkhead mounting option allows for installation in tight spaces or against walls where rear-access clearance is unavailable.

      • Reliable Machinery Protection: Designed to meet API 670 standards, providing high-integrity monitoring for critical assets like turbines and compressors.

      • Modular Scalability: Users can mix and match various monitor modules (Vibration, Thrust, Temperature, etc.) within the same 14-slot frame.

      • Simplified Maintenance: Front-facing wiring in the bulkhead configuration makes it easier for technicians to perform troubleshooting and module replacements without moving the rack.

      • Redundancy Support: The backplane supports dual-redundant power supplies to ensure continuous operation even if one power source fails.

      Important Considerations and Precautions

      • Power Supply Placement: The Power Supplies and the Rack Interface Module (RIM) MUST occupy the far-left positions in the rack.

      • Earthing: Ensure proper system grounding to prevent electrical noise from interfering with sensitive vibration measurements.

      • Internal Barriers: If using internal intrinsic safety barriers, you must consult specific documentation (141495) as these require a dedicated Earthing Module and may change the rack depth requirements.

      • Bulkhead Cooling: Because the bulkhead rack is mounted against a surface, ensure adequate ventilation around the top and bottom of the unit to prevent heat buildup.

      • Module Compatibility: Ensure all installed modules are compatible with the backplane version and the firmware of the Rack Interface Module.

      Product Applications

      The 3500/05-01-03 configuration is typically used in heavy industrial environments where machinery protection is mission-critical:

      • Oil and Gas: Monitoring of large centrifugal compressors and pumps in refineries or offshore platforms.

      • Power Generation: Protection of steam and gas turbines, as well as generators.

      • Water Treatment: Monitoring of high-capacity pumps and motors.

      • Mining and Metals: Protection of large fans, blowers, and mills.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
