33B7073X032 Emerson

33B7073X032 Emerson Gate Module

Product  Description：

The 33B7073X032 is a high-precision electronic assembly, often functioning as a Main Electronics Board or a Digital Signal Processing (DSP) module. It is engineered to process complex analytical data or control signals in real-time. This specific part number is frequently found within the Fisher DVC6200 series digital valve controllers or high-tier Rosemount transmitters. It is designed to interpret 4-20 mA HART signals or Foundation Fieldbus commands and translate them into physical movements for valve positioning or digitized process variables for monitoring. The board is built with high-grade industrial semiconductors to ensure stability under varying thermal and electrical loads.

Product Parameters

• Model Number: 33B7073X032

• Supply Voltage: Typically loop-powered via $9 \text{ VDC}$ to $32 \text{ VDC}$ depending on the host instrument configuration.

• Communication Protocol: Supports HART 5, HART 7, or Foundation Fieldbus digital communication over the analog loop.

• Accuracy: Capable of signal processing with an accuracy of within $\pm 0.1\%$ of the span.

• Operating Temperature: Rated for industrial extremes, typically ranging from $-40\text{°C}$ to $85\text{°C}$.

• Material Construction: Lead-free soldering (RoHS compliant) with conformal coating for moisture and corrosion resistance.

• Input Impedance: Designed to meet standard HART impedance requirements (approximately $250 \text{ \Omega}$ for loop stability).

• Diagnostic Features: Integrated self-test capabilities for memory integrity and sensor loop health.

Product Advantages

A primary advantage of the 33B7073X032 is its Advanced Diagnostic Capability. This board doesn't just pass signals; it monitors the health of the entire instrument, predicting potential failures before they cause a process shutdown. The High Noise Immunity ensures that the digital communication remains clear even in environments with heavy electromagnetic interference from motors or high-voltage lines. Its Modular Architecture allows for easier field repairs, as the electronics can often be swapped without removing the entire instrument body from the process line. Furthermore, the Low Power Consumption design ensures that the device can operate reliably even on long cable runs with significant voltage drops.

Important Considerations and Precautions

When handling the 33B7073X032, Electrostatic Discharge (ESD) is the most critical concern. Always use a grounded wrist strap when touching the board, as a static spark too small for a human to feel can destroy the sensitive microprocessors. During installation, ensure that the Conduit Seals are properly seated; moisture ingress is the leading cause of premature failure for this electronic assembly. It is also vital to verify the Firmware Compatibility between this board and the existing system software; installing a newer revision of the board into an older instrument may require a software update to the handheld communicator or DCS. Finally, always ensure the Terminal Screws are tightened to the correct torque to avoid intermittent power losses which can cause "flapping" in control loops.

Product Applications

The 33B7073X032 is deployed in critical control and measurement points across various heavy industries.

• Oil and Gas Extraction: Used in remote wellhead monitoring where reliable digital communication over long distances is required.

• Refining and Petrochemical: Integrated into control valves that manage the flow of volatile chemicals, requiring fast and precise positioning.

• Power Generation: Employed in steam turbine control systems where high-temperature resilience and fast response times are mandatory.

• Pulp and Paper: Utilized in chemical recovery cycles where the electronics must withstand corrosive atmospheres.

• Water Treatment: Managing automated dosing pumps and flow meters in large-scale municipal filtration plants.

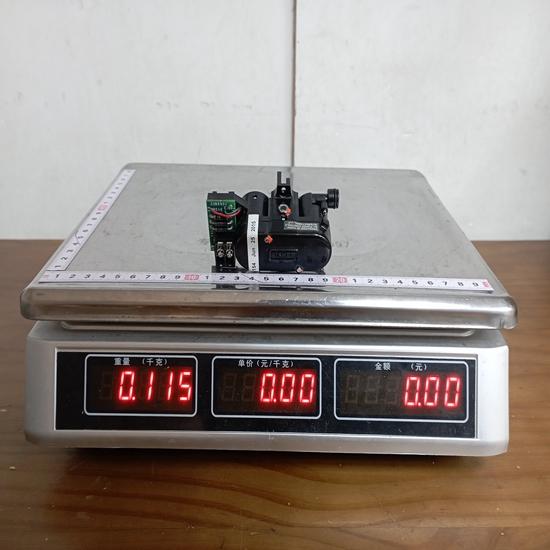

The structure and details of the product：
