330130-085-02-05 Bently Nevada

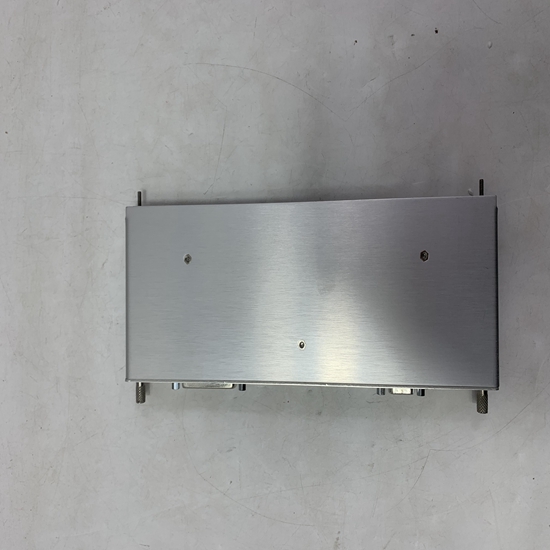

330130-085-02-05 Bently Nevada I / O module

Product  Description：

• An I/O module in a Bently Nevada system typically resides in the rear of the monitoring rack, directly behind its associated monitor module. It provides the physical connections for transducers (probes, accelerometers, temperature sensors, etc.) and also houses the necessary circuitry for signal conditioning, power supply to the transducers, and in many cases, intrinsically safe barriers for hazardous area applications. Different I/O module types are designed to support specific transducer types and provide different sets of outputs.

  Key Functions

  • Transducer Interface: Provides the direct connection points for various types of machinery protection and condition monitoring transducers.
  • Signal Conditioning: Converts raw sensor signals (e.g., voltage from a proximity probe) into a format suitable for the monitor module's internal processing. This often includes filtering, amplification, and linearization.
  • Transducer Power Supply: Delivers the necessary excitation voltage to active transducers.
  • I/O Jumper Configuration: Allows for selection of transducer type (e.g., proximitor, seismic, temperature) and often affects how the module processes signals.
  • Output Generation: For certain I/O modules, they can also include internal terminations for analog outputs (e.g., 4-20 mA) and/or relay outputs, enabling direct connection to external control systems or data historians.
  • System Integrity Checking (OK Detection): Continuously monitors the integrity of the transducer, its wiring, and the module itself (often referred to as "transducer OK" or "channel OK"), providing status indications to the monitor and the overall system.
  • Hazardous Area Compliance: Many I/O modules are available in "Internal Barrier" versions, incorporating intrinsically safe zener barriers to allow for direct connection of sensors located in hazardous (potentially explosive) environments without requiring external barriers.

  Product Parameters (Typical)

  Parameters vary significantly depending on the specific I/O module and the transducer type it supports.

  • Supported Transducer Types: Proximitor (proximity probes for displacement/vibration), Velomitor (velocity transducers), Accelerometers, Temperature (RTDs, Thermocouples), Keyphasor (speed/phase reference), Hydro (hydro-specific sensors).
  • Number of Channels: Typically 2, 3, 4, or 6 channels per module, corresponding to the associated monitor module.
  • Input Signal Range: Varies by transducer type (e.g., -10 Vdc to +10 Vdc for proximitor/seismic, specific ranges for RTDs/T/Cs).
  • Output Signal Types (if applicable):
    • Analog Outputs: 4-20 mA, 0-10 V, 1-5 V (for connecting to DCS, PLC, or recorders).
    • Relay Outputs: Dry contacts (NO/NC) for alarms or shutdowns.
  • Termination Type:
    • Internal Terminations: Wiring connects directly to terminals on the I/O module.
    • External Terminations: Requires a separate terminal block or panel for field wiring connections.
  • Hazardous Area Certifications: Many modules are available with ATEX, IECEx, CSA, UL certifications for intrinsic safety (e.g., II 1 G [EEx ia] IIC) or non-incendive operation (e.g., Class I, Zone 2 / Division 2).
  • Power Consumption: Typically low, a few watts per module (e.g., 4.5W - 10.5W).
  • Operating Temperature Range: Wide industrial range (e.g., -30°C to +65°C or -40°C to +70°C).
  • Storage Temperature Range: (e.g., -40°C to +85°C).
  • Humidity: 95%, non-condensing.
  • Physical Dimensions: Designed to fit specific slots in Bently Nevada racks (e.g., 3500 Series full-height rear slot).
  • Weight: Varies, typically between 0.2 kg to 0.9 kg (0.44 lbs to 2 lbs).
  • Compatibility: Specific to the Bently Nevada monitoring system series (e.g., 3500 Series, Orbit 60 Series).

  Product Advantages

  • Precise Signal Conditioning: Ensures high-fidelity data acquisition from transducers, critical for accurate machinery diagnostics and protection.
  • System Integrity: "OK detection" circuitry continuously verifies transducer and wiring health, providing confidence in the monitoring system's readings.
  • Enhanced Safety: Internal Barrier versions simplify installation in hazardous areas by providing intrinsic safety without requiring bulky external barriers.
  • Modularity and Flexibility: Allows for selection of the exact I/O module type needed for specific transducer inputs, enabling tailored system configurations.
  • Robust Industrial Design: Built to withstand harsh industrial environments, ensuring long-term reliability and minimal downtime.
  • Streamlined Integration: Provides clear interfaces for connecting field wiring and, in some cases, direct outputs to plant control systems.

  Precautions

  • Module-Monitor Pairing: Each I/O module is specifically designed to work with a particular Bently Nevada monitor module. Incorrect pairing will prevent proper system operation.
  • Jumper Settings: Correctly setting I/O jumpers is critical for proper transducer type identification and signal processing. Incorrect settings can lead to inaccurate readings or "NOT OK" conditions.
  • Wiring Standards: Strict adherence to Bently Nevada's wiring guidelines is paramount. Incorrect wiring can cause ground loops, noise interference, transducer damage, or inaccurate measurements.
  • Hazardous Area Installation: For internal barrier modules, absolutely follow all instructions and requirements detailed in the hazardous area approval certificates (e.g., wiring methods, grounding, enclosure requirements). Failure to do so can compromise safety.
  • ESD Protection: Always use proper electrostatic discharge (ESD) precautions when handling I/O modules to prevent damage to sensitive electronic components.
  • Power Down for Replacement: While some modules might be hot-swappable in certain systems, it's always best practice to consult the specific module's manual for proper replacement procedures, and to consider powering down the rack if safety or operational requirements dictate.

  Product Applications

  Bently Nevada I/O modules are indispensable in any industry that relies on continuous monitoring and protection of rotating and reciprocating machinery. Their applications span:

  • Power Generation: Turbines (gas, steam, hydro), generators, pumps, fans, and auxiliary equipment in power plants.
  • Oil and Gas: Compressors, pumps, gas turbines, expanders, and pipelines in refineries, petrochemical plants, and offshore platforms.
  • Chemical Processing: Critical pumps, reactors, and mixers where machinery health directly impacts process safety and efficiency.
  • Pulp and Paper: Monitoring of paper machines, chippers, and other large rotating assets.
  • Water and Wastewater Treatment: Large pumps, blowers, and aeration equipment.
  • Manufacturing: Precision machinery, robotics, and high-speed production lines.
  • Mining and Metals: Heavy machinery, crushers, and conveyors.

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
