30GC-1-A43000013C METSO

30GC-1-A43000013C  METSO analog module

Product  Description：

Metso analog modules, extensively utilized within the MaxDNA distributed control system (DCS) and high-performance valve control platforms, are specialized industrial components designed to interface continuous field signals with a central processing controller. These modules process variable signals such as voltage or current from sensors, transmitters, and positioners, enabling high-precision monitoring and regulation of critical process parameters.

Product Parameters

The technical characteristics of Metso analog modules are designed to maintain signal integrity and high resolution in heavy industrial environments:

• Input and Output Channels: Available in various configurations, typically ranging from 4-channel to 16-channel variants for both input (A/I) and output (A/O) modes.

• Signal Ranges: Full compatibility with standard industrial loops, supporting 4-20mA current loops and 0-10V or -10V to 10V DC voltage signals.

• Analog-to-Digital Resolution: Equipped with high-performance 16-bit conversion capability, ensuring high-granularity data representation for the processor.

• Accuracy and Linearity: Exceptional conversion accuracy, typically maintained within a margin of plus or minus 0.1 percent of the full scale across the entire operating range.

• Channel Isolation: Features robust galvanic isolation rated up to 1500V AC or higher between channels and the system logic bus to prevent ground loops.

• Sampling and Update Rate: Fast response times with channel scan intervals typically ranging between 10 milliseconds and 50 milliseconds.

Product Advantages

Metso analog modules offer distinct engineering and operational advantages tailored for continuous process optimization:

• Exceptional Precision Control: The combination of high-resolution processing and low thermal drift allows for exceptionally tight control loops, which is essential for stabilizing complex process variables.

• Integrated Diagnostics: Advanced onboard diagnostics automatically monitor loop health, providing immediate alerts for issues such as wire-breaks, short circuits, or out-of-range sensor behavior.

• High Electromagnetic Immunity: Advanced internal filtering mechanisms shield the analog circuitry from severe electromagnetic interference caused by nearby high-power machinery and drives.

• Hot-Swappable Functionality: Designed to allow module replacement while the rest of the control system is powered and active, ensuring zero production interruption during maintenance.

• Ruggedized Longevity: Built with industrial-grade components and optional conformal coatings to withstand corrosive gases, moisture, and high thermal variations common in processing plants.

Product Applications

These analog modules are critical elements deployed across automated heavy industries:

• Pulp and Paper Processing: Monitoring and controlling continuous variables such as stock consistency, chemical flow rates, steam pressure, and drying cylinder temperatures.

• Valve Automation and Positioners: Driving smart positioners to accurately modulate large control valves in response to changing dynamic process loads.

• Chemical and Refining Processes: Regulating temperature profiles, vessel levels, and feed ratios in continuous reactor systems.

• Mining and Minerals: Managing slurry density, water flow, and flotation chemical dosing loops in ore processing facilities.

• Power Generation: Monitoring critical boiler feedwater flow and turbine temperature lines to ensure stable thermal equilibrium.

Important Precautions

To preserve module accuracy and ensure operational safety, the following guidelines must be meticulously observed:

• Single-Point Shield Grounding: Always utilize high-quality shielded twisted-pair cabling for all analog signals. Ensure the shield is grounded at a single designated point to prevent noise injection via ground loops.

• Separated Cable Trays: Run low-voltage analog signal cables in dedicated wire trays separated from high-voltage AC power lines and motor drive outputs to prevent inductive cross-talk.

• Power Supply Stability: Ensure that the loop power supply for 4-20mA current loops is highly stable and free from voltage sagging, as fluctuations can degrade measurement accuracy.

• Unused Channel Configuration: To prevent floating signals from generating erratic internal diagnostic alarms, short-circuit the terminals of unused channels or deactivate them via the software configuration.

• Electrostatic Protection: When installing or servicing the physical module, use an anti-static wrist strap connected to a verified ground point to avoid damaging sensitive input circuitry.

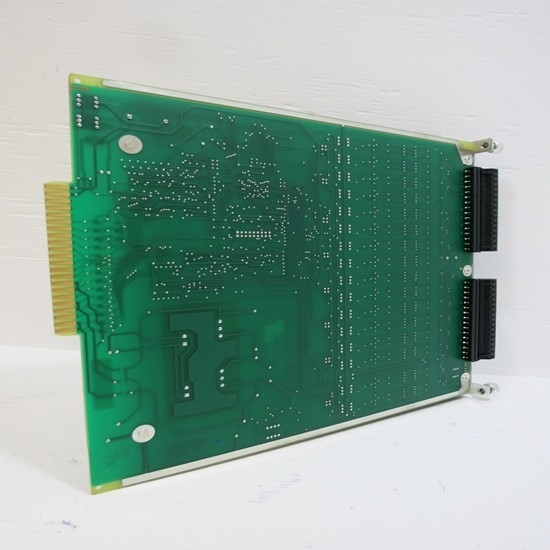

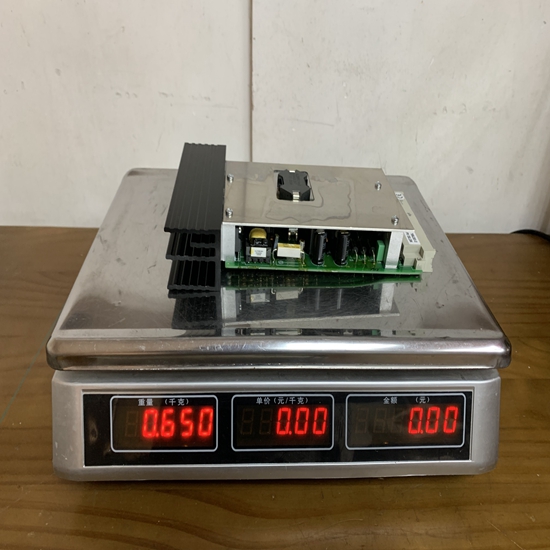

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
