2711P-K4M5D Allen-Bradley

2711P-K4M5D Allen-Bradley I / O module

Product  Description：

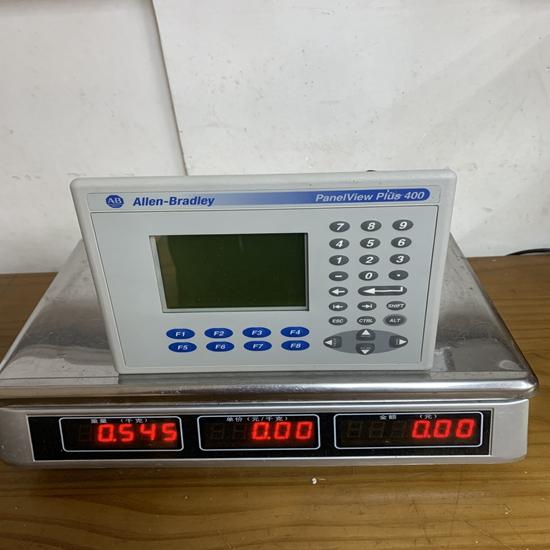

The Allen-Bradley 2711P-K4M5D is an operator interface terminal from the PanelView Plus 400 series, a line of Human Machine Interfaces (HMIs) manufactured by Rockwell Automation. This device allows operators to monitor, control, and display application status information on a plant floor.

Product Specifications

• Product Series: PanelView Plus 400 Operator Terminal

• Part Number: 2711P-K4M5D

• Display Size: $3.5 \text{-inch}$ (some sources specify $3.8 \text{-inch}$ viewing area)

• Display Type: Grayscale/Monochrome passive matrix, film compensated super-twist nematic (FSTN)

• Resolution: $320 \times 240$ pixels

• Input Type: Keypad (The 'K' in the part number denotes Keypad)

• Keypad Features: Includes programmable function keys ($\text{F1}$ to $\text{F8}$), numeric keys, navigation keys, $\text{Enter}$, $\text{Tab}$, and $\text{Shift}$ keys.

• Communication Ports: RS-232 Port (supports protocols like DF1) for connection to a controller and a USB port for connecting peripheral devices (e.g., keyboard, mouse, USB removable drive).

• Power Input: DC Power (typically $24 \text{ VDC}$ nominal)

• Software: Utilizes FactoryTalk View Machine Edition (ME) for application development.

• Memory: $64 \text{ MB}$ of system memory (RAM).

• Storage: Non-volatile storage memory varies by series, allowing for user application and data storage.

• Real-Time Clock (RTC): Built-in battery-backed clock for time-stamping data.

Product Advantages

• Reliable Keypad Input: The physical keypad provides a reliable and tactile input method, which is often preferred in harsh or gloved environments over a touchscreen.

• ControlLogix/CompactLogix Integration: It is designed to work seamlessly within the Rockwell Automation Integrated Architecture, enabling easy data access and communication with Allen-Bradley PLCs and PACs.

• Robust Design: As an industrial operator terminal, it is built to withstand typical factory floor conditions, including temperature variations and vibration (when installed correctly).

• Compact Size: The $3.5 \text{-inch}$ form factor is ideal for mounting in small control panels or machine-mounted enclosures where space is limited.

• USB Connectivity: The inclusion of a USB port allows for easy transfer of application files, firmware updates, and connection of external peripherals for enhanced maintenance or operation.

Important Considerations (Precautions)

• Discontinued Status: The 2711P-K4M5D is an obsolete/discontinued model. Users should consider migration to newer platforms like the PanelView Plus 7 for new installations to ensure long-term support, availability of spare parts, and access to the latest security and software features.

• Operating Environment: Ensure the terminal is installed within the specified operating temperature range. It is recommended to use cooling fans or heaters as needed to maintain the ambient temperature within the enclosure below the maximum limit ($\text{e.g., } 55 \text{ °C}$ or $131 \text{ °F}$).

• Power Connection: Always disconnect all electrical power to the system before wiring or replacing the terminal to prevent electric shock and damage to the HMI or control system.

• Software Version: The terminal's firmware supports specific versions of FactoryTalk View ME software. Ensure the development environment version is compatible with the terminal's firmware version.

• Cutout Dimensions: Verify the panel cutout dimensions are correct before installation ($123 \text{ mm}$ height by $156 \text{ mm}$ width, approximately) to ensure a proper and sealed fit.

Product Applications

The 2711P-K4M5D PanelView Plus 400 is deployed as an operator interface for machinery and small control processes across various industrial sectors.

• Small Machine Control: Used on individual pieces of equipment or standalone machines to provide the operator with start/stop controls, status displays, and minor recipe adjustments.

• Process Monitoring: Providing real-time viewing of critical process variables, alarm statuses, and trend data on a compact display.

• Data Entry: Allowing operators to enter setpoints, change operating modes, or acknowledge alarms using the physical keypad.

• Factory Automation: Integrated into manufacturing cells, packaging lines, and assembly equipment where a reliable, compact HMI is required for local machine control and diagnostics.
