23747-04 ROSEMOUNT

23747-04 ROSEMOUNT Input module

Product  Description：

The 23747-04 cable is an integral part of an analytical measurement loop. It is engineered with a focus on shielding and environmental resistance. This specific model belongs to the family of cables used for VP (Variopol) quick-disconnect sensors, though it can also be configured for standard terminal-block connections. The "-04" suffix typically denotes a specific factory-defined length of 4 feet (approximately 1.2 meters), allowing for short-range connections where excess cable bulk must be avoided.

Product Parameters

• Model Number: 23747-04

• Cable Length: 4 feet (1.2 meters)

• Conductor Type: Multiple shielded pairs of tinned copper conductors

• Jacket Material: Heavy-duty Polyvinyl Chloride (PVC) or specialized polymer depending on the specific environmental rating

• Temperature Rating: Typically rated for operation up to $80^\circ\text{C}$ ($176^\circ\text{F}$)

• Signal Support: Designed to carry both the conductivity raw signal and the RTD (Resistance Temperature Detector) signal for temperature compensation

• Compatibility: Used with Rosemount 400, 400VP, 402, 402VP, and 403 sensors

• Connector End A: Stripped and tinned wires for transmitter terminal connection

• Connector End B: Specifically prepared ends for sensor-side termination

Product Advantages

• Signal Integrity: The cable features high-quality internal shielding that prevents electromagnetic interference (EMI) from distorting the sensitive micro-Siemens conductivity measurements.

• Integrated Temperature Compensation: It includes dedicated leads for the sensor's internal temperature element, ensuring that the transmitter can perform accurate temperature-compensated readings in real-time.

• Durability: The outer jacket is designed to resist common industrial chemicals, moisture, and mechanical abrasion, providing a long service life in harsh plant environments.

• Low Capacitance: The electrical characteristics of the cable are optimized to reduce capacitance, which is vital for maintaining accuracy in high-frequency conductivity measurements.

• Pre-terminated Convenience: By providing a factory-cut and tinned cable, Rosemount reduces the risk of wiring errors and saves installation time for field technicians.

Important Considerations

• Moisture Protection: Always ensure that the connection point between the sensor and the cable is kept dry and clean. Moisture ingress at the connector can cause a "shunt" resistance, leading to significantly inaccurate readings.

• Minimum Bend Radius: Avoid sharp kinks or tight bends in the cable during installation. Exceeding the minimum bend radius can damage the internal shielding and degrade signal quality.

• Distance Limitations: While this is a 4-foot cable, if you extend it using junction boxes, ensure the total distance does not exceed the manufacturer’s recommended maximum for the specific conductivity range to avoid signal attenuation.

• Proper Grounding: The shield wire (drain wire) must be correctly grounded at the transmitter end only to prevent ground loops while effectively shunting noise away from the signal wires.

• Chemical Compatibility: Ensure the PVC jacket is compatible with the ambient atmosphere of the plant. Exposure to certain organic solvents may cause the jacket to become brittle over time.

Product Applications

The 23747-04 cable is used in any industry requiring high-purity water or liquid analysis where Rosemount conductivity sensors are deployed.

• Power Generation: Monitoring the purity of boiler feed water and steam condensate to prevent scale and corrosion in turbines.

• Pharmaceutical Industry: Measuring the conductivity of Water-for-Injection (WFI) and purified water systems to ensure compliance with pharmacopeia standards.

• Semiconductor Manufacturing: Monitoring Ultra-Pure Water (UPW) used in the wafer cleaning processes where even trace contamination is critical.

• Food and Beverage: Used in Clean-in-Place (CIP) systems to detect the concentration of cleaning chemicals and to ensure thorough rinsing with fresh water.

• Chemical Processing: Monitoring the concentration of acids, bases, or salts in various chemical synthesis and dilution processes.

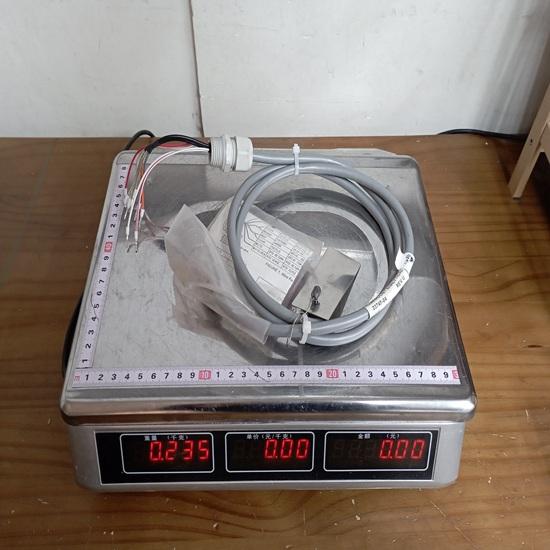

The structure and details of the product：
