214777-1 METSO

214777-1 METSO Termination Unit

Product  Description：

Metso Termination Units, frequently utilized within the MaxDNA, DNA (Dynamic Network Architecture), and Valmet DNA distributed control systems, are specialized field interface components. They serve as the physical and electrical bridge between field wiring coming from the plant equipment and the electronic I/O modules of the control system. These units consolidate field signals, manage electrical distribution, and provide robust isolation to protect sensitive control room electronics.

Product Parameters

The technical configuration of a Metso Termination Unit is defined by its signal capacity, voltage ratings, and connection mechanics:

• Channel Density: Commonly configured in 8-channel, 16-channel, or 32-channel variations to align with standard I/O module capacities.

• Signal Compatibility: Designed for specific signal types including 4-20mA analog loops, low-voltage DC digital inputs, and high-voltage AC/DC discrete circuits.

• Rated Insulation Voltage: Typically supports galvanic and optical isolation rated up to 1500V AC or 2500V DC to isolate field faults.

• Connection Type: Heavy-duty screw clamp terminals or tension-clamp blocks designed to securely accept wire sizes ranging from 0.5 to 2.5 square millimeters.

• Operating Voltage: Supports field side distribution voltages of 24V DC, 48V DC, 115V AC, or 230V AC depending on the specific model type.

• Fuse Protection: Equipped with individual per-channel or per-group fuses, often rated between 50mA and 2A, depending on the load characteristics.

Product Advantages

Metso Termination Units are engineered to streamline plant installation and maximize system reliability:

• Enhanced Signal Integrity: Integrated filtering networks eliminate electromagnetic interference and high-frequency line noise before the signal reaches the I/O processor.

• Cross-System Compatibility: Functions seamlessly with Valmet and Metso DNA I/O architectures, utilizing standard pre-fabricated ribbon or system cables to minimize wiring errors.

• Maintenance Accessibility: Features clear terminal labeling and onboard status indicators, allowing technicians to measure signals directly at the terminal strip without disconnecting field wires.

• Fused Protection Circuits: Built-in short-circuit and overvoltage protection ensure that a field-side wiring fault is contained locally and does not damage the central control system.

• Ruggedized Mechanical Construction: Designed to withstand harsh industrial control room environments, featuring high-quality plastics and corrosion-resistant terminal blocks.

Product Applications

These units are deployed globally as the primary wiring interface in large-scale process industries:

• Pulp and Paper Mills: Managing thousands of analog and digital signals from valves, pumps, and consistency transmitters across the production floor.

• Power Generation: Interfacing critical turbine control, boiler temperature monitors, and generator protection circuits to the central DCS.

• Chemical Processing Plants: Distributing intrinsically safe and standard field signals from reactors, distillation columns, and blending tanks.

• Waste-to-Energy Facilities: Handling input and output configurations for continuous emissions monitoring systems and incinerator control loops.

• Mining and Minerals Processing: Providing durable field termination points for heavy machinery instrumentation, crushers, and conveyor monitoring networks.

Important Precautions

To maintain operational safety and prevent equipment damage, the following precautions must be observed during installation and operation:

• Correct Fuse Replacement: Always replace blown fuses with the exact type and rating specified by the manufacturer. Installing an oversized fuse removes the protection layer and can destroy the connected I/O module.

• Shield Grounding Management: Ensure that instrumentation shield wires are connected to the designated ground rail on the termination unit according to the plant grounding philosophy to avoid ground loops.

• Voltage Level Verification: Verify that the field voltage applied to the terminal block matches the specific module rating. Introducing high-voltage AC into a low-voltage DC termination unit will cause catastrophic hardware failure.

• Secure Cable Retention: Tighten terminal screws to the recommended torque specification. Under-tightening causes high contact resistance and intermittent signals, while over-tightening can strip the threads or damage the wire core.

• Power Isolation Before Service: Before performing modifications, wire tracing, or replacing components on the termination unit, ensure the corresponding field power supply loop is completely de-energized to prevent accidental short circuits or electrical shock.

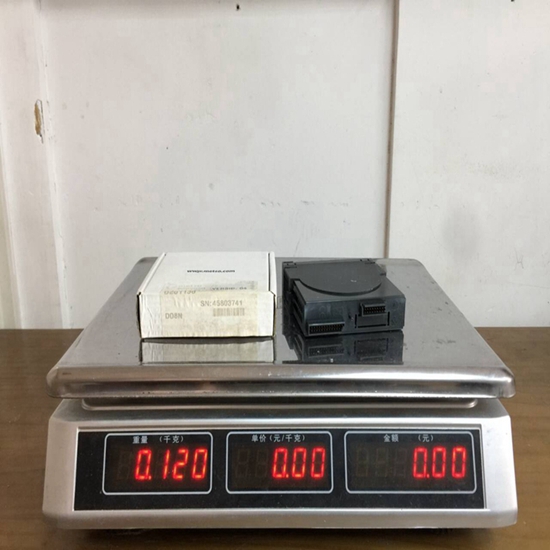

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
