1TGE102019R1001 ABB Bailey

1TGE102019R1001 ABB Bailey Analog Output Modules

Product  Description：

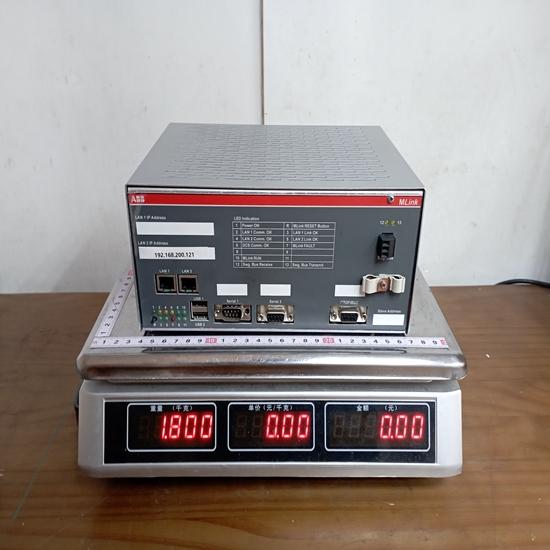

• • • • • • The 1TGE102019R1001 MLink acts as a communication controller that aggregates data from up to 60 motor starter units within an MNS iS switchgear lineup. It functions as a data concentrator, protocol converter, and diagnostic hub. By using this unit, industrial plants can transition from complex point-to-point hardwiring to a streamlined, bus-based digital communication architecture. It typically supports redundancy configurations to ensure high system availability in critical industrial processes.

            Product Parameters

            • Product Type: MLink Communication and Control Unit

            • System Integration: MNS iS Integrated Motor Control System

            • Supply Voltage: $24 \text{ VDC}$ (Typical range $19.2 \text{ to } 31.2 \text{ VDC}$)

            • Power Consumption: Approximately $300 \text{ mA}$ to $500 \text{ mA}$ depending on load

            • Communication Interfaces: Includes Dual Ethernet ports for LAN connection and Fieldbus interfaces (typically Profibus DP, Modbus TCP, or Profinet depending on specific firmware/hardware version)

            • Processor Performance: High-speed industrial microprocessor for real-time data processing

            • Mounting Type: DIN rail mounting or dedicated internal rack mounting within the MNS iS cabinet

            • Operating Temperature: $0^{\circ} \text{C}$ to $+60^{\circ} \text{C}$

            • Protection Degree: IP20 (Designed for installation inside protected electrical cabinets)

            • Max Device Support: Capable of managing communication for up to 60 MControl units per MLink

            Product Advantages

            • Centralized Data Management: It collects all motor-related data (current, voltage, power, thermal status, maintenance hours) into a single point, making it easily accessible for plant operators.

            • Reduced Wiring Complexity: By using digital bus communication to replace hundreds of individual control wires, it significantly reduces the cost of installation and the risk of wiring errors.

            • Redundancy Support: The unit supports "Primary" and "Backup" configurations. If the primary MLink fails, the backup takes over communication automatically without interrupting the process.

            • Advanced Diagnostics: It provides detailed fault analysis and predictive maintenance data, helping to identify potential motor failures before they lead to costly downtime.

            • Flexible Protocol Conversion: It bridges the internal device bus to standard industrial protocols like Profibus or Ethernet-based networks, ensuring compatibility with almost any modern DCS.

            Important Considerations

            • Configuration Tooling: The MLink requires specific ABB software, such as MNavigate, for initial configuration, IP address assignment, and parameter mapping.

            • Firmware Compatibility: Ensure that the MLink firmware version is compatible with the version of the MControl units and the software tools being used in the system.

            • Power Stability: As a sensitive electronic controller, it requires a stable $24 \text{ VDC}$ power supply. Significant voltage fluctuations can cause communication drops or hardware resets.

            • Cybersecurity: When connected to an Ethernet network, users must implement proper network security measures (firewalls, VLANs) to prevent unauthorized access to the motor control system.

            • Environment: While designed for industrial use, the IP20 rating means it must be kept in a clean, dry, and dust-free environment inside an electrical room or cabinet.

            Product Applications

            The ABB 1TGE102019R1001 MLink is primarily used in large-scale industrial projects requiring sophisticated motor management.

            • Oil and Gas Refineries: Managing hundreds of motors for pumps, compressors, and fans where reliability and remote diagnostics are critical.

            • Power Plants: Controlling auxiliary motor systems and ensuring high availability through redundant communication links.

            • Mining and Metal Processing: Operating heavy-duty motor starters in harsh environments while providing real-time load monitoring to the central control room.

            • Water and Wastewater Treatment: Coordinating the operation of pumps and chemical dosing systems across large facilities.

            • Chemical Plants: Monitoring motor health in continuous processes where unexpected shutdowns can lead to significant material loss or safety hazards.
