140MSB10100 SCHNEIDER

140MSB10100 SCHNEIDER Basis unit

Product  Description：

Schneider Electric Base Units, primarily recognized as backplanes or racks within the Modicon M580 and X80 automation platforms, serve as the rigid physical and electrical foundation for programmable automation controllers. These units provide the mechanical slots required to securely mount central processing units, power supplies, and varied input/output modules within an automation cabinet. More than just a physical frame, the base unit integrates a high-speed communication bus that links all inserted modules to the main processor, enabling deterministic control and seamless data exchange.

Product Parameters

The technical configuration of a Schneider Electric Base Unit defines its capacity, power distribution, and structural limits:

• Slot Configurations: Available in multiple sizes including 4-slot, 8-slot, 12-slot, and 16-slot variants to accommodate different system architectures.

• Dual Bus Architecture: Integrates both an Ethernet backplane bus for high-speed Ethernet modules and a standard X-bus to maintain backward compatibility with legacy modules.

• Backplane Bandwidth: High-speed Ethernet data transmission rates running at 100 Mbps directly across the module connectors.

• Current Supply Capacity: Heavy-duty internal power traces designed to safely distribute power from the main power supply module to all connected slot positions.

• Mechanical Mounting: Built with pre-drilled holes for direct panel mounting using screws or designed to snap directly onto standard 35mm DIN rails.

• Environmental Protection: Available with standard insulation or optional G3 conformal coating to shield the underlying circuitry from harsh atmospheric environments.

Product Advantages

Schneider Electric Base Units offer distinct engineering advantages that enhance system resilience and data speed:

• Native Ethernet Connectivity: The inclusion of Ethernet traces directly on the backplane eliminates the need for external network cables between communication modules, speeding up data throughput.

• Hot-Swapping Safety: Engineered with internal electronic protection that permits field modules to be inserted or removed under full system power without disrupting the operations of adjacent modules.

• Rugged Mechanical Design: Constructed with robust composite and metallic components that withstand heavy shocks and persistent machine vibrations without losing mechanical contact.

• Advanced Module Pin Protection: The slot receptacles are recessed and guided to prevent misaligned pins when technicians insert modules in low-visibility or tight spaces.

• Future-Proof Expansion: The dual-bus configuration allows plants to mix legacy modules with modern Ethernet-capable modules on a single rack, protecting long-term capital investments.

Product Applications

These base units provide the foundational support for automation systems deployed across demanding industrial fields:

• Assembly Line Manufacturing: Providing the rugged frame for high-speed automotive assembly lines, component sorting systems, and material handling conveyors.

• Water Purification Stations: Hosting the processors and communication modules responsible for managing municipal water filtration and chemical dosing systems.

• Food and Beverage Facilities: Organizing the control hardware for automated mixing, boiling, and packaging applications where continuous runtime is critical.

• Building Management Systems: Serving as the main infrastructure panel for centralized climate control, data center cooling ventilation, and lighting arrays.

• Material Processing Plants: Supporting the high-density I/O configurations needed for continuous cement processing, glass manufacturing, and metal forming machinery.

Important Precautions

To guarantee safe operation and prevent electrical damage to the system backplane, the following instructions must be followed:

• Strict Power Budgeting: Calculate the total current consumption of all modules planned for the rack before installation to ensure the total load does not exceed the power supply or backplane limits.

• Rigid Enclosure Grounding: The base unit must be connected to the control cabinet's functional earth ground rail using a low-impedance grounding wire to prevent electrical noise build-up.

• Slot Safety Cover Usage: Always install protective blank slot covers over any empty or unused slot positions on the backplane to shield live electronic pins from falling screws, dust, and debris.

• Proper Rail Alignment: When mounting on a DIN rail, ensure the locking mechanisms are fully engaged and that the rail is securely anchored to prevent the rack from twisting under the weight of heavy field wiring.

• Pin Inspection: Never force a module into a base unit slot if resistance is felt. Remove the module and inspect both the backplane receptacle and the module connector for bent pins or contamination before re-attempting installation.

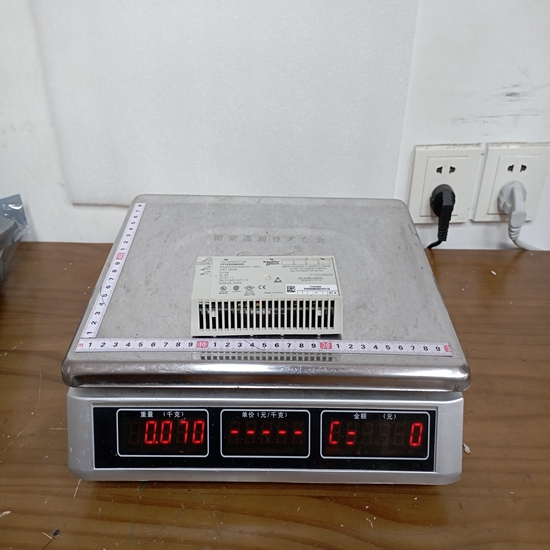

The structure and details of the product：

Our services：

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Warranty: one year

Please make an inquiry for more models：
