1056-02-25-38-HT ROSEMOUNT

1056-02-25-38-HT ROSEMOUNT Input module

Product  Description：

The Rosemount 1056 belongs to the Intelligent Analyzer family, known for its modular design and ease of use. This model is a multiparameter instrument that can be configured to measure two different or identical parameters simultaneously. The modular design allows for field-replaceable signal boards, making it one of the most flexible analyzers on the market. It features a large, high-contrast LCD screen that provides real-time data for both channels, along with temperature readings and diagnostic alerts.

Product Parameters

The alphanumeric code 1056-02-25-38-HT represents a specific hardware configuration:

• Power (02): This indicates the unit operates on 24 VDC power supply.

• Measurement Input 1 (25): This code typically designates a Toroidal Conductivity signal board.

• Measurement Input 2 (38): This code usually refers to a 4-20mA Current Output board or a specific specialized sensor interface.

• Housing (HT): Specifies a high-temperature rated or specialized physical enclosure for harsh industrial mounting.

• Enclosure Rating: The unit is housed in a Polycarbonate NEMA 4X/IP65 rated enclosure, which is highly resistant to corrosion and moisture.

• Ambient Temperature Limits: Operates effectively between -20°C and 60°C (-4°F to 140°F).

• Relative Humidity: 5% to 95% non-condensing.

• Display: A large, multi-language back-lit LCD ($128 \times 96$ pixels).

• Outputs: Equipped with two 4-20mA isolated outputs as standard.

Product Advantages

One of the primary advantages of the 1056-02-25-38-HT is its Dual-Input Capability. By monitoring two points with a single instrument, users save on installation costs, panel space, and maintenance time. The Modular Design is a significant benefit, as signal boards can be swapped or upgraded in the field without replacing the entire unit.

The Advanced Diagnostics feature is another standout advantage; the analyzer continuously monitors the health of the sensors and the electronics, providing "Fault" or "Warning" messages to prevent downtime. The User Interface is remarkably intuitive, featuring "Quick Start" programming screens that guide the user through the initial setup in seconds. Furthermore, the high-temperature rating ensures long-term reliability in environments where standard analyzers might fail due to thermal stress.

Important Considerations and Precautions

When installing and operating the Rosemount 1056, several precautions must be observed. First, ensure that the Power Supply matches the 02 code (24 VDC), as applying AC line voltage to this specific model will cause permanent damage to the internal circuitry.

Second, the Sensor Wiring must be kept away from high-voltage power lines to avoid electromagnetic interference, which can lead to unstable readings. Third, for the Toroidal Conductivity (25) input, ensure the sensor is mounted in a location with adequate flow and that the sensor body does not touch the walls of the pipe to avoid "fringe effects" that skew accuracy.

Finally, although the enclosure is NEMA 4X rated, it is highly recommended to use Proper Conduit Seals during installation to prevent moisture from entering the housing through the cable entries, which is a common cause of electronic failure in humid environments.

Product Applications

The Rosemount 1056-02-25-38-HT is widely utilized across various demanding industries due to its ruggedness and precision.

• Water and Wastewater Treatment: Monitoring influent and effluent conductivity to ensure compliance with environmental regulations.

• Chemical Processing: Managing concentration control in pickling tanks or chemical scrubbers using toroidal conductivity sensors that resist fouling.

• Power Generation: Monitoring boiler feed water and condensate return to prevent corrosion in high-pressure steam systems.

• Food and Beverage: Specifically used in Clean-in-Place (CIP) systems to monitor the concentration of cleaning agents and ensure the purity of the final rinse water.

• Pulp and Paper: Monitoring black liquor or white liquor concentrations and managing chemical recovery processes.

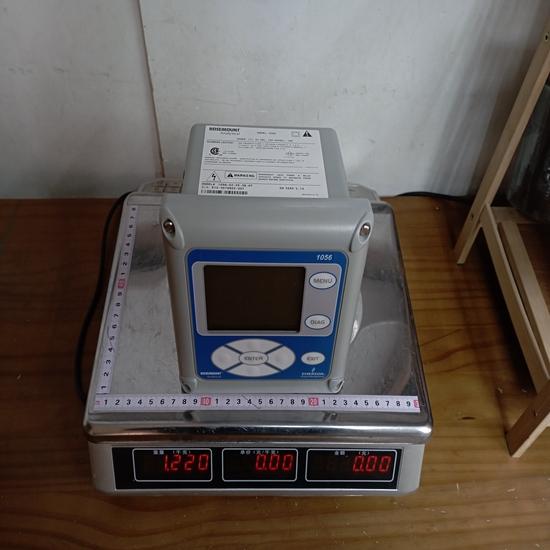

The structure and details of the product：
