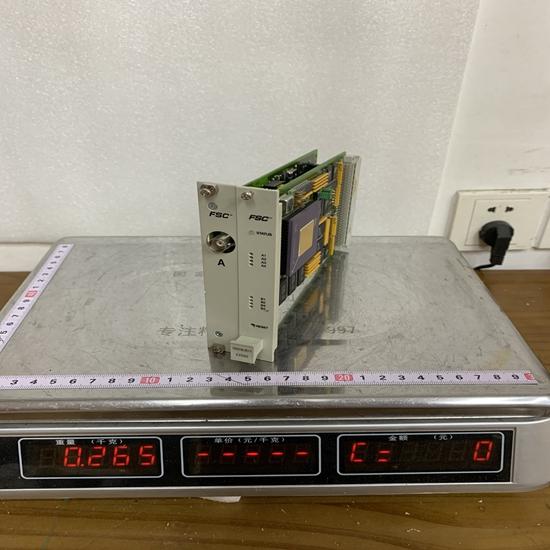

10018/E/1 HONEYWELL

The 10018/E/1 is designed as a high-density, 16-channel digital input module specifically for safety-critical applications requiring SIL 3 (Safety Integrity Level 3) certification. Its primary function is to monitor the status of field contacts—such as emergency stop buttons, pressure switches, and valve position limit switches—and report their state to the Safety Manager controller. The "E" in the part number typically signifies enhanced coating or environmental protection (G3 conformal coating), which protects the internal circuitry against corrosive gases and moisture, making it suitable for harsh industrial environments like offshore platforms or chemical plants.

Product Parameters

• Module Type: Fail-Safe Digital Input

• Number of Channels: 16 independent input channels

• Input Voltage: $24 \text{ VDC}$ nominal (typically sourced from the safety system power supply)

• Safety Integrity Level: Certified for use in SIL 3 loops according to IEC 61508

• Input Current: Approximately $5 \text{ mA}$ to $10 \text{ mA}$ per channel to ensure reliable contact wetting

• Isolation: Provides galvanic isolation between the field circuitry and the internal system bus to prevent surges from damaging the controller

• Power Dissipation: Low-power design to minimize heat buildup within the high-density I/O rack

• Conformal Coating: Standard G3 coating for resistance to harsh chemical environments (Class G3 per ISA-S71.04)

• Diagnostics: Internal self-testing capabilities that check for hardware failures and cross-talk between channels

Product Advantages

One of the foremost advantages of the 10018/E/1 is its Uncompromising Safety Reliability. The module utilizes a "fail-safe" design, meaning that if an internal component fails, the module is designed to default to a safe state (usually an "open" or "off" state) to prevent a hazardous situation. Its Advanced Self-Diagnostics continuously monitor the health of the input circuits, detecting open wires or short circuits before they can cause a system failure.

The High Channel Density allows for a significant number of safety inputs to be packed into a small footprint, reducing the total number of I/O racks required. Additionally, the G3 Conformal Coating provides an extra layer of protection, ensuring a long service life in environments where hydrogen sulfide ($H_2S$), chlorine, or high humidity are present, which would otherwise corrode standard electronic components.

Important Considerations and Precautions

When installing or maintaining the 10018/E/1, it is essential to follow ESD (Electrostatic Discharge) Procedures. The high-sensitivity electronics can be damaged by static charges during handling or insertion into the chassis. Wiring Verification is critical; because this is a safety-critical module, a single wiring error could potentially bypass a safety function.

Technicians must ensure that the Field Power Supply is stable and within the $24 \text{ VDC}$ tolerance, as voltage fluctuations can trigger false safety trips. It is also important to note that this module is part of a Proprietary System; it must only be used with compatible Honeywell Safety Manager or FSC backplanes and configured using the authorized Honeywell engineering software. Finally, when replacing a module, always verify that the Hardware Revision and software configuration match the original system design to maintain the SIL 3 certification of the loop.

Product Applications

The Honeywell 10018/E/1 is found in industries where a process failure could result in catastrophic environmental damage or loss of life.

• Emergency Shutdown (ESD) Systems: Monitoring manual E-stop buttons and process switches to trigger an immediate plant shutdown in an emergency.

• Fire and Gas (F&G) Systems: Interfacing with smoke detectors, heat sensors, and gas monitors to initiate fire suppression or ventilation systems.

• Burner Management Systems (BMS): Ensuring that fuel valves, igniters, and flame scanners are in the correct state before and during the operation of industrial boilers or furnaces.

• High Pressure Protection Systems (HIPPS): Monitoring pressure sensors to close isolation valves if the pressure exceeds safe design limits, protecting downstream piping.

• Oil and Gas Production: Used on offshore rigs and in refineries for wellhead control and critical process interlocking.
