07AI91 GJR5251600R0202 ABB Bailey

07AI91 GJR5251600R0202 ABB Bailey I / O module

Product  Description：

• • ABB Bailey I/O modules come in various types (e.g., analog input, analog output, digital input, digital output), and their parameters vary accordingly. Here are some typical parameters:

    • For Digital Input Modules (e.g., IMDSI22):

      • Number of Channels: Typically 16 or 32 channels.

      • Input Voltage: Common ranges include 24 VDC, 48 VDC, 125 VDC, and 120 VAC.

      • Turn-On/Turn-Off Voltage: Specific thresholds for logic state changes.

      • Current (Typical): 4.5 mA @ 24 VDC, 7.0 mA @ 120 VAC.

      • Response Time: Fast (e.g., 1.5 ms) or Slow (e.g., 17 ms) options.

      • Isolation: Optically isolated.

    • For Digital Output Modules (e.g., IMDSO14, IMDSO15):

      • Number of Channels: Typically 8 or 16 channels.

      • Output Voltage: Common ranges include 24 VDC, 48 VDC, and 120 VAC.

      • Output Current: Max current per channel (e.g., 250 mA for open collector, higher for relay outputs).

      • Output Type: Open collector, solid-state, or electromechanical relay.

      • Isolation: Optically isolated.

    • For Analog Input Modules (e.g., IMASI23):

      • Number of Channels: Typically 4, 8, or 16 channels.

      • Input Range: Common ranges include 4-20 mA, 1-5 VDC, 0-10 VDC, 0-100 mVDC, thermocouple (TC) and RTD types.

      • Input Impedance: High impedance for voltage inputs (>1 MΩ).

      • Accuracy (at 25°C): Typically ±0.03% of Full Scale Range (FSR).

      • Resolution: (e.g., 12-bit, 16-bit).

      • Common Mode Rejection: (e.g., 90 dB @ 60 Hz).

    • For Analog Output Modules (e.g., IMASO11):

      • Number of Channels: Typically 2, 4, or 8 channels.

      • Output Range: 4-20 mA, 1-5 VDC.

      • Output Load: (e.g., 600 Ω max for current mode).

      • Accuracy (at 25°C): Typically ±0.15% of FSR (voltage), ±0.25% of FSR (current).

      • Repeatability: Typically ±0.05% of FSR.

    • General Parameters (common to most modules):

      • Power Requirements: Typically +5 VDC, +15 VDC, -15 VDC, +24 VDC (sourced from the termination unit).

      • Power Dissipation: (e.g., 1.65 W for a digital input module).

      • Operating Temperature: Wide industrial range (e.g., 0°C to 70°C).

      • Humidity: Non-condensing.

      • Mounting: Typically plugs into a module mounting unit (MMU) or termination unit (TU).

      • Compatibility: Designed for specific ABB Bailey DCS series (e.g., INFI 90, Symphony Plus).



    Product Advantages



    • Robustness and Reliability: Built for demanding industrial environments, ensuring long-term stable operation and high system availability.

    • Modular Design: Allows for flexible system configuration, easy expansion, and simplified maintenance by enabling hot-swapping in many cases.

    • Comprehensive I/O Types: Offers a wide range of analog and digital I/O types to interface with virtually any field device, accommodating diverse application needs.

    • High Performance: Provides fast response times and accurate signal processing, crucial for critical control applications.

    • Integrated Diagnostics: Built-in diagnostic capabilities help in quickly identifying and troubleshooting issues, reducing downtime.

    • Backward Compatibility: Many newer ABB Bailey I/O modules maintain compatibility with older systems, facilitating upgrades and system modernization while preserving existing investments.



    Precautions



    • Read Documentation: Always consult the specific instruction manuals for your exact module type. Failure to do so can lead to injury, damage, or process upsets.

    • Qualified Personnel: Installation, maintenance, and operation should only be performed by qualified engineers or technicians with experience in electronic circuitry.

    • Power Disconnection: Disconnect all power before installing, removing, or servicing modules to prevent electrical shock.

    • Electrostatic Discharge (ESD): ABB Bailey modules contain sensitive electronic components. Use proper ESD precautions (e.g., wrist straps, anti-static mats) when handling them.

    • Wiring Integrity: Ensure all field wiring is correct, securely connected, and properly insulated to prevent electrical noise, short circuits, or ground loops.

    • Environmental Conditions: Operate within the specified temperature, humidity, and non-corrosive environment limits to ensure optimal performance and longevity.

    • Process Upsets: Be aware that adjusting or removing modules while the system is online can cause process upsets. Secure the controlled equipment before performing such actions.

    • Radio Frequency Interference (RFI): Exercise caution when using portable communication equipment (e.g., two-way radios, cell phones) near the modules, as RFI can influence electronic equipment.



    Product Applications



    ABB Bailey I/O modules are widely used in critical industrial applications where continuous, reliable control and monitoring of processes are essential. Their applications span various industries, including:

    • Power Generation: Control and monitoring of boilers, turbines, generators, balance-of-plant systems in thermal, hydro, and nuclear power plants.

    • Oil and Gas: Process control in refineries, petrochemical plants, pipelines, and offshore platforms, managing pumps, compressors, valves, and safety systems.

    • Pulp and Paper: Automation of paper machines, digesters, recovery boilers, and various other processes.

    • Chemical Industry: Batch and continuous process control for chemical reactors, distillation columns, and blending operations.

    • Water and Wastewater Treatment: Control of pumping stations, filtration plants, purification processes, and distribution networks.

    • Metals Industry: Automation of rolling mills, furnaces, and material handling systems in steel and aluminum production.



    Typical Applications



    • Monitoring Tank Levels: An analog input module reads the 4-20 mA signal from a level transmitter in a chemical storage tank.

    • Controlling Motor Speed: An analog output module sends a 0-10 VDC signal to a variable frequency drive (VFD) to adjust the speed of a pump motor.

    • Actuating Valves: A digital output module sends a 24 VDC signal to open or close a solenoid valve based on process conditions.

    • Detecting Equipment Status: A digital input module monitors the contact closure from a limit switch to determine if a conveyor is running or stopped.

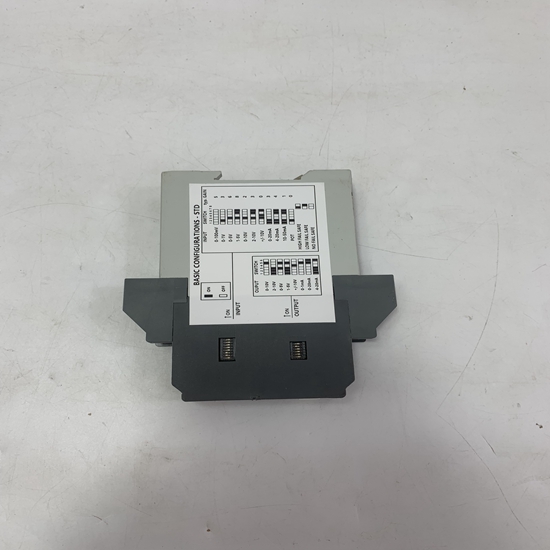

The structure and details of the product：
